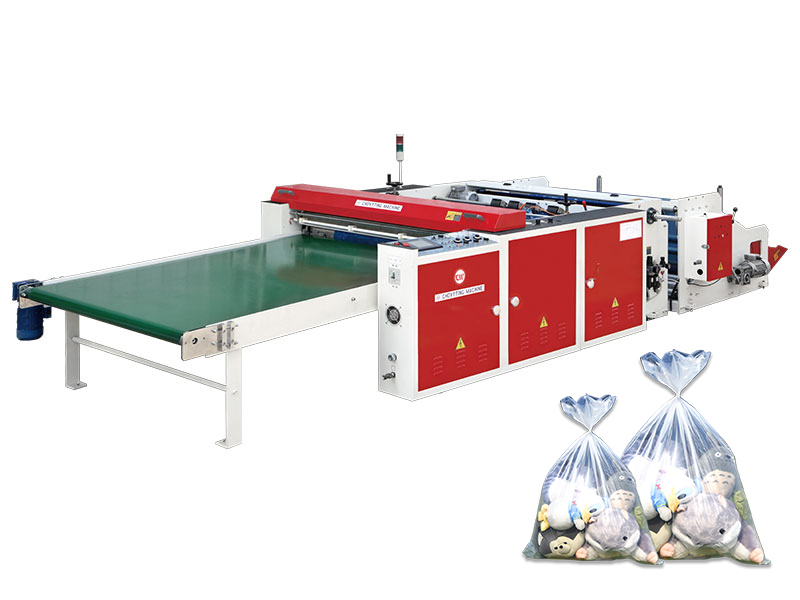

CW-1400FB Fully Automatic Bottom Sealing Bag Making Machine By Flying Knife System

Bottom sealing bag / double sealing bag
1. Newly design flying knife cutting system, easy to exchange the blade.
2. Double electric hot heating sealing design, sealing firmly.
3. The entire stack, the entire output.
4. Can make multi-lane non-print bag.

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Fully Automatic Bottom Sealing Bag Making Machine By Flying Knife System

Heavy duty bottom sealing bag making machine, which is specializing in producing tension less bag.

Main Features

1. Newly design flying knife cutting system, easy to exchange the blade.
2. Double electric hot heating sealing design, sealing firmly.
3. The entire stack, the entire output.
4. Can make multi-lane non-print bag.

Optional Equipment

1. Hanger hole puncher device.
2. V type sealing device.
3. Surface friction unwinding device.
4. Double servo feeding for producing double lane print bag.

Technical Parameter
Type CW-1000FB  CW-1200FB CW-1400FB CW-1600FB
Bag making length 200-3000mm 200-3000mm 200-3000mm 200-3000mm
Bag making width 900mm 1100mm 1300mm 1500mm
Mechanical  speed 80pcs/min 80pcs/min 80pcs/min 70pcs/min
Film thickness (mm) 0.04×2-
0.25×2
0.04×2-
0.25×2
0.04×2-
0.25×2

0.04×2-
0.25×2
Total power 7.5KW  8KW 9KW 10KW
Machine weight 1800kg 2000kg  2100kg 2200kg
Machine dimension 6000X1800X1300mm 6000X2000X1300mm 6000X2200X1300mm 6000X2400X1300mm
Air compressor  6HP  6HP  6HP  6HP



Detailed Images

Automatic Unwinding Part

1. Single unwinding max diameter is 1000mm, unwinding roller is head blocked,load material by auto pneumatic
2. Feeding dragging is AC motor control, automatic adjust speed control

Printing image tracking

With printing tracking photocell use Datalogic, from Italy (Maximum length of printing bag is 800mm)

Flying Knife

1. Using the design by flying knife cutting off, the knife is easy to be replaced.
2. The sealing design is heated by two-sided (up and down) heating lines, to achieve a strong sealing line.
3. The bag sending design providing the non-overlapping sealing line system.

Automatic Collect Table

1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model).
2.Double servo feeding for producing double lane print bag.
