CW-600IEB Servo Drive FFS heavy duty polythene tube film embossing gusseting machine

(FFS) packaging film offers advantages over premade bagging such as increased production speed, reduced per-bag cost, and increased flexibility in finished bag size.
It also has the feature of preventing slipping in the pallet arrangement with its embossed structure.

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

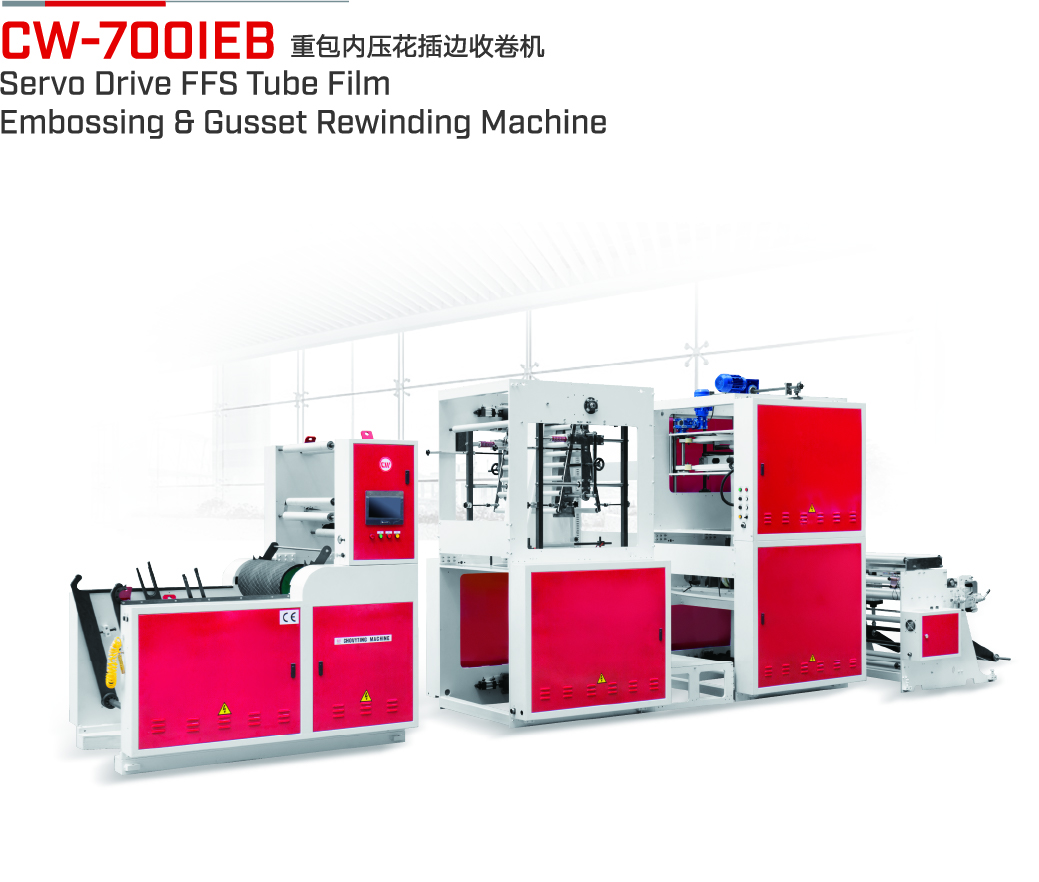

Servo Drive FFS heavy duty polythene tube film embossing gusseting machine



Brief Introduction

The Form, Fill, and Seal (FFS) packaging film designed to be reliable, simple, and cost effective, while offering manycustomization options.(FFS) packaging film offers advantages over premade bagging such as increased production speed, reduced per-bag cost, and increased flexibility in finished bag size.It also has the feature of preventing slipping in the pallet arrangement with its embossed structure.FFS is an ideal packaging solution for many different industries including petrochemical and plastic resins, agricultural, chemical, biomass, industrial manufacturing, pet food and livestock feed, lawn and garden. Products that may be packaged by these machines include resin pellets, wood pellets, salt, fertilizer, rocks and stone, chemicals, powders, spices and powders, dried foods, cement and slurries, and granular products.

Applications for FFS are for example

Food industry – for Salt, Sugar, Pasta PackagingConstruction industry – for chalk, plaster, Diatom oozeAgriculture – for soil packagingPetrochemicals -packing of granulate material like Polyethylene granules, master batches, chemicals etcHeavy duty sacks

Model CW-700IEB
Width Of Jumbo Roll 700mm
Diameter Of Jumbo Roll 1000mm
Diameter Of Rewind 1500mm
Rewind Mismatch Distance 2-100mm
Max Depth Of Side Gusset 40-100mm
Applicable Materials HDPE、LDPE
Material Thickness 0.04mm ~
0.3mm
Production Speed 150m/min
Total Power 12.7KW
Weight Of Machine 3500kg
Dimension Of Machine 8.42x
1.45x
2.7m



Details Images
Penuamatic unwinder:

suitable for jumbo roll diameter 900mm, width 700mm. weight 350kg.with automatic EPC for edge correction.with air shaft, automatic tension control.

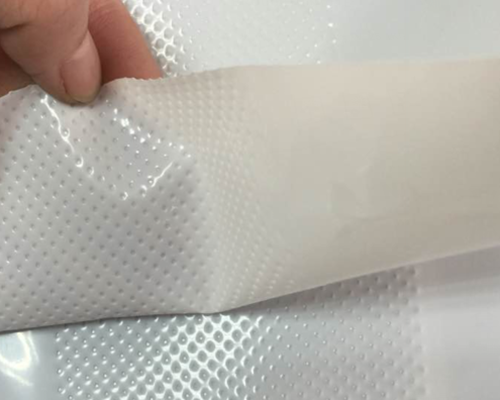

Embossing unit for anti-slip purpose:

from inside out embossing pattern, suitable for film thickness
0.04-
0.3mm material.inline with rotary tower, for rotary the pattern.by AC motor independent control.

Gusseting unit:

gusseting depth: 40-100mm each side.with meter counter & auto stop functionwith servo motor drive for traction

Rewinder unit:

with surface friction rewinding designwith 3″ & 6″ air shaft for exchangewith servo motor control , auto tension. synchronized speed with main machinewith hydraulic unloading system, max.affordable weight can be 300kg.





CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery.Due to our strong R&D team, we accept customization of special machines, welcome to consult +86 13958813143(WhatsApp)


CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
