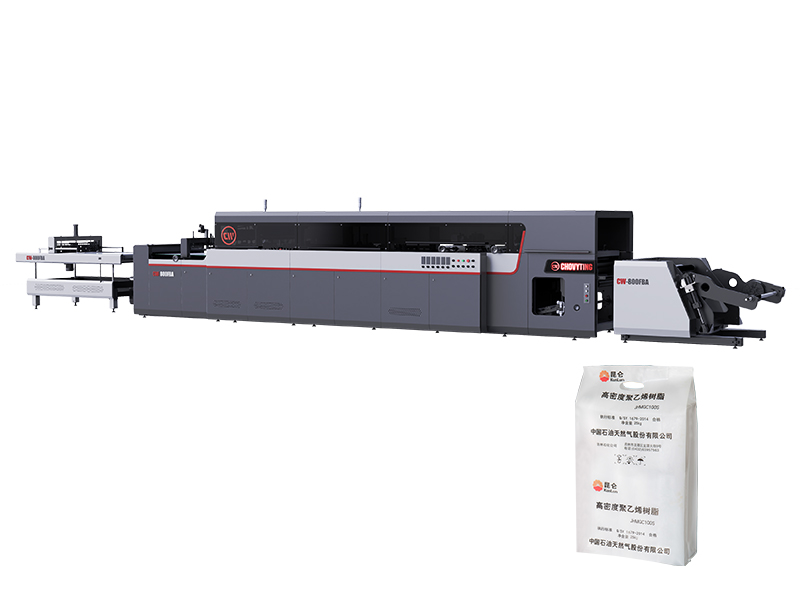

CW-800FBA Plastic Heavy Duty Bottom Sealing Bag Making Machine

Heavy duty bottom sealing Bag
1. tension free
2. heating wire sealing
3. fly knife in synchronized belt for cutting
4. suitable for thick plastic film

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Plastic Heavy Duty Bottom Sealing Bag Making Machine

This series machines are able to make large bags with width up to 1500mm, and length up to 3000m, which is usually used as garbage bag, ice bag or industrial bags for pellets packaging.

Main Features

1. Tension free
2. Heating wire sealing
3. Fly knife in synchronized belt for cutting
4. Suitable for thick plastic film

Technical Parameter
Model CW-800FBA
Length of bag making 750mm
Width of bag making 150-600mm
Thickness of bag making 0.04-
0.25mm
Distance of double sealing line 50-90mm
Speed of bag making 60pcs/min
Total power About
11.4kw
Weight of machine 2800kg
Machine dimension(L×M×H) 6000×1500×1420mm



Details Images

Auto loading-up device (Dia.1m)

Sealing knife and cutting bag fly knife

Printing image tracking and punching handle device

Auto counting table (optional)

Wheat Rice Sugar Flour Powder Fertilizer Cement heavy duty bottom sealing Bag Making Machinery with flying knife.



CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery.Due to our strong R&D team, we accept customization of special machines, welcome to consult +86 13958813143(WhatsApp)


CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
