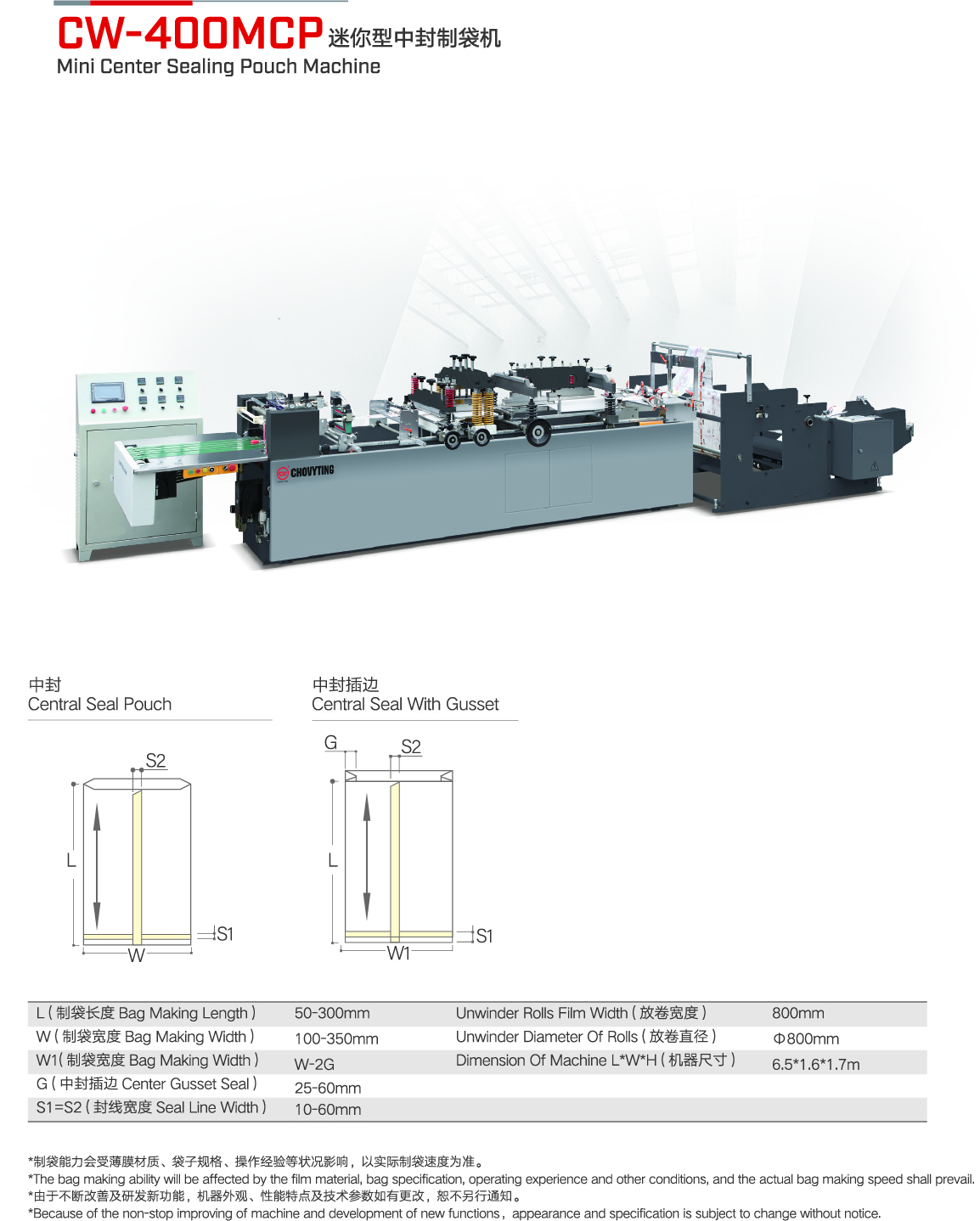

CW-400MCP Mini Center Sealing Pouch Machine

Central seal pouch
1. Brand-new mini design,save space,easy operate.
2. Servo driving is fit for long-time high speed machine running.
3. Fully automatic tension control,without operation problem.

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Mini Center Sealing Pouch Machine

Newly designed mini type high speed center sealing bag making machine,fit for small scale production which reduce buyer’s cost.

Main Features

1. Brand-new mini design,save space,easy operate.

2. Servo driving is fit for long-time high speed machine running.

3. Fully automatic tension control,without operation problem.

4. With center sealing forming and bottom sealing function.

5. With hole punch device(euro slot punch)



Optional Equipment

1. Center sealing gusset device.

2. Easy tear-up+hole punch device.



Technical Parameter
Model CW-400MCP
Width of unwinding 1000mm
Pouch-making length 50-200mm
Pouch-making width 60-300mm
Total power 9.4KW
Weight of machine 2040kg
Overall dimension(LxWxH) 5800x1500x1350mm



Details Images

Double Unwinding Partwith EPC correction and auto tension control system

Center sealing part

Longitudial sealing bar

Center gusset device

punch device

Collecting table and control box
L(Bag length) 50~380mmW(Bag width) 50~350mmS1(Bottom seal width) 10、20、30mmS2(Center seal width) 10~30mm
central seal pouch

CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery.Due to our strong R&D team, we accept customization of special machines, welcome to consult +86 13958813143(WhatsApp)


CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
