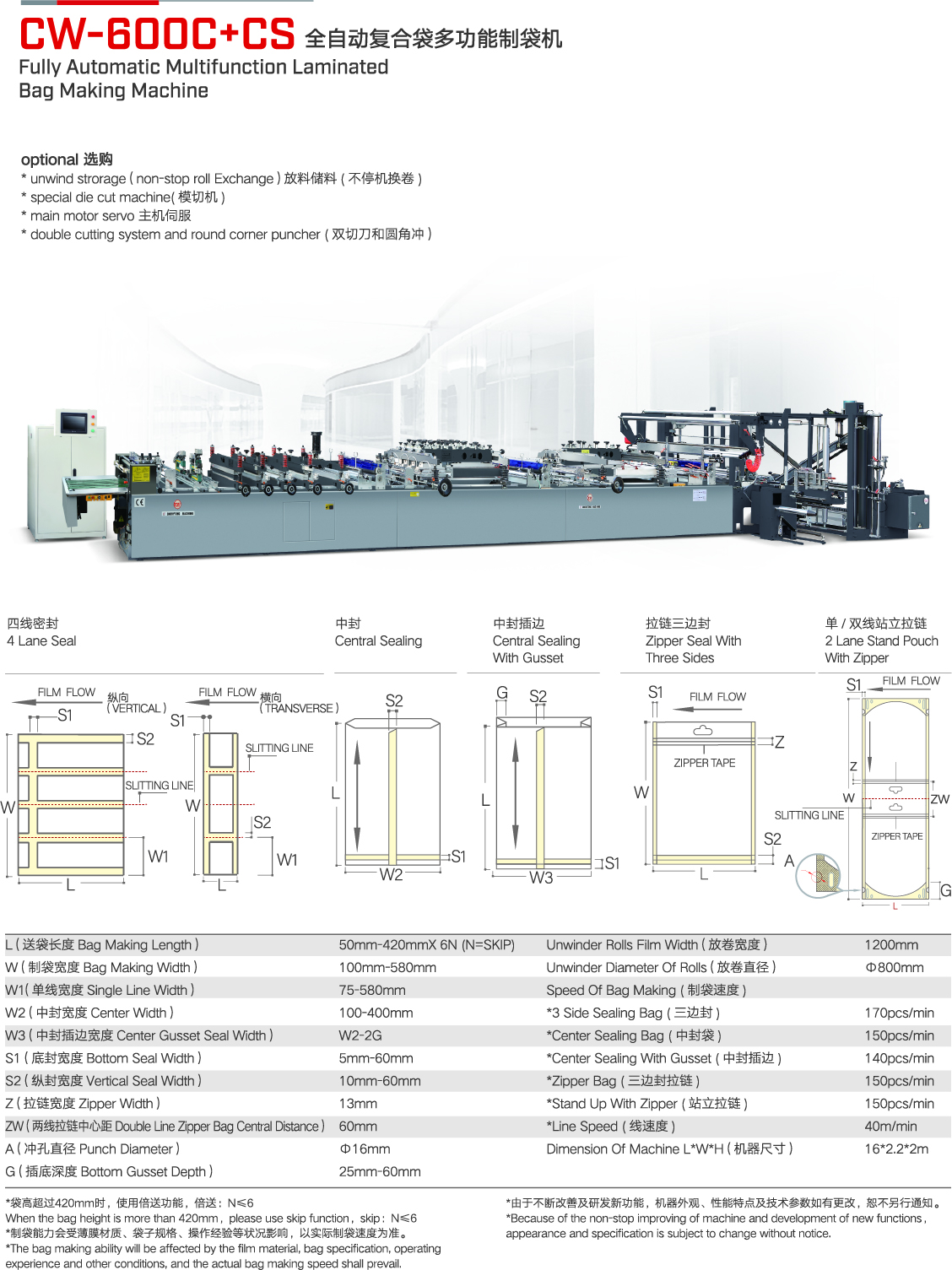

CW-600C+CS Automatic Multifunction Laminated Bag Making Machine

Centarl sealing pouch / 3 side sealing pouch / central sealing gusset pouch / 4 side sealing pouch
1.Large human-computer interface screen control, automatic design.
2.Newly design 4 PCS servo motor feeding,high speed produce film and no shake.
3.automatic control tension of unwind and stand up indirect materials.

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Automatic Multifunction Laminated Bag Making Machine

Newly designed multifunction laminated bag making machine,with many different type bag making ,such as 3 side seal bag,stand up bag,zipper bag and center seal bag. easy to operate,fast to change different type bag making device.

Main Features

1.Large human-computer interface screen control, automatic design.
2.Newly design 4 PCS servo motor feeding,high speed produce film and no shake.
3.automatic control tension of unwind and stand up indirect materials.

Optional Equipment

1. industrial chiller
2. double unwind device
3. Hang hole puncher

Technical Parameter
Type CWZD-500C+CS CWZD-600C+CS
Unwinder width 1000mm 1200mm
Bag making length 70-350mm×6(N≤6) 70-350mm×6(N≤6)
Bag making width 70-480mm 70-580mm
Bag making speed 40-140pcs/min 40-140pcs/min
Line speed 30m/min 30m/min
Total power 46KW  52KW
Machine weight 5400kg 5900kg
Machine dimension 12500X2300X1900mm 12500X2400X1920mm



Details Images

Standard: single unwinder

Optional Double unwinders (for vacuum pouch)

Secondary film inserting & pouching unit

For forming the stand up pouch bottom part. Without photocell tracking.

Punching device

standard: easy tear hole & round hole (diameter:6/8/10 each one pcs)optional: handle punch (customerized) euro hole

Cutting knife

Cutting knife uses scissor type knife (can be customized to be fly knife cutting system).

Central sealing part

Side gusset part

Zipper part
