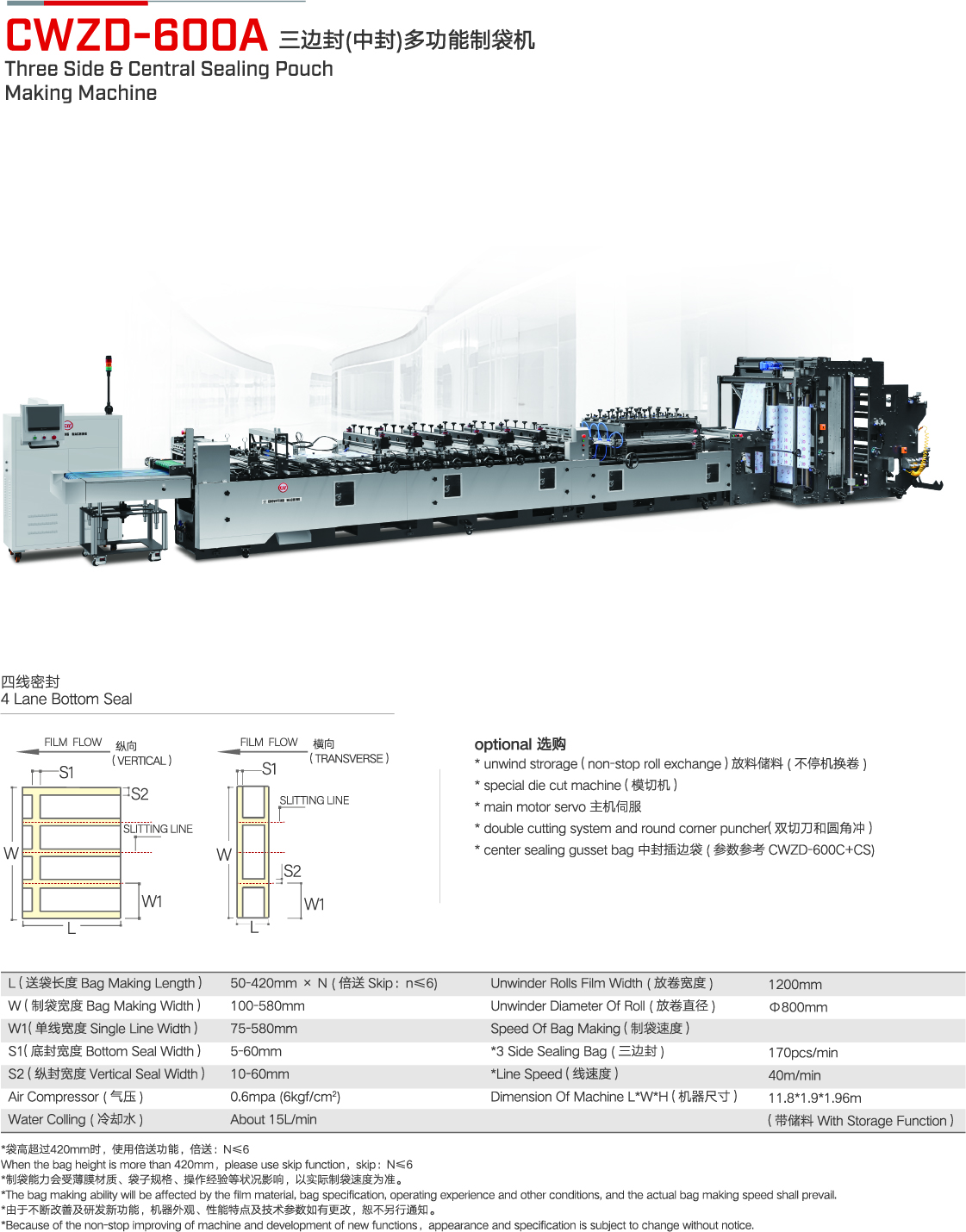

CWZD-600A Three Side & Center Sealing Bag Making Machine

Central sealing pouch / 3 side sealing pouch / zipper pouch / central sealing gusset pouch
1. All of parameter display by touch screen.
2. It has EPC and double photocell traking from unwinding.
3. Super length size ,which has 6 times skip feeding design.

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Three Side & Center Sealing Bag Making Machine

Economic type laminated film bag making machine, it is used for various kinds of laminated material, meanwhile, it also has side gusset of center sealing bag, can make four side sealing bag and five side sealing bag. (A Series don’t have zipper bag design)

Main Features

1. All of parameter display by touch screen.
2. It has EPC and double photocell traking from unwinding.
3. Super length size ,which has 6 times skip feeding design.
4. Automatic waste film rewinding unit.

Optional Equipment

1. Stand-up doy bag device.
2. Punching for handle.
3. Round angle puncher.

Technical Parameter
Type CWZD-400A CWZD-500A
Width of unwinding before fold 800mm 1000mm
Pouch-making Length 70-350mmXN (N≤6) 70-350mmXN (N≤6)
Pouch-making Width 70-400mm 70-500mm
Capacity 40-150pcs/min 40-150pcs/min
Total Power 24kw 26kw
Weight of Machine 3500kg 3850kg
Overall Dimension 8000*1750*1800mm 8000*1950*1900mm
Air compressor not included 5HP 5HP



Details Images

Unwinder

Central sealing forming part

The vertical sealing part &Zipper sealing part (optional)

Gusseting unit

Gusseting unit



CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery.Due to our strong R&D team, we accept customization of special machines, welcome to consult +86 13958813143(WhatsApp)


CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
