3 side sealing pouch / single film insert doypack pouch / 3 side seal zipper pouch
1. Folding, punch,bottom gusset and sealing automatic design
2. Newly design feeding structure, high speed feeding no shake
3. Special design bottom gusset device, easily to operate
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

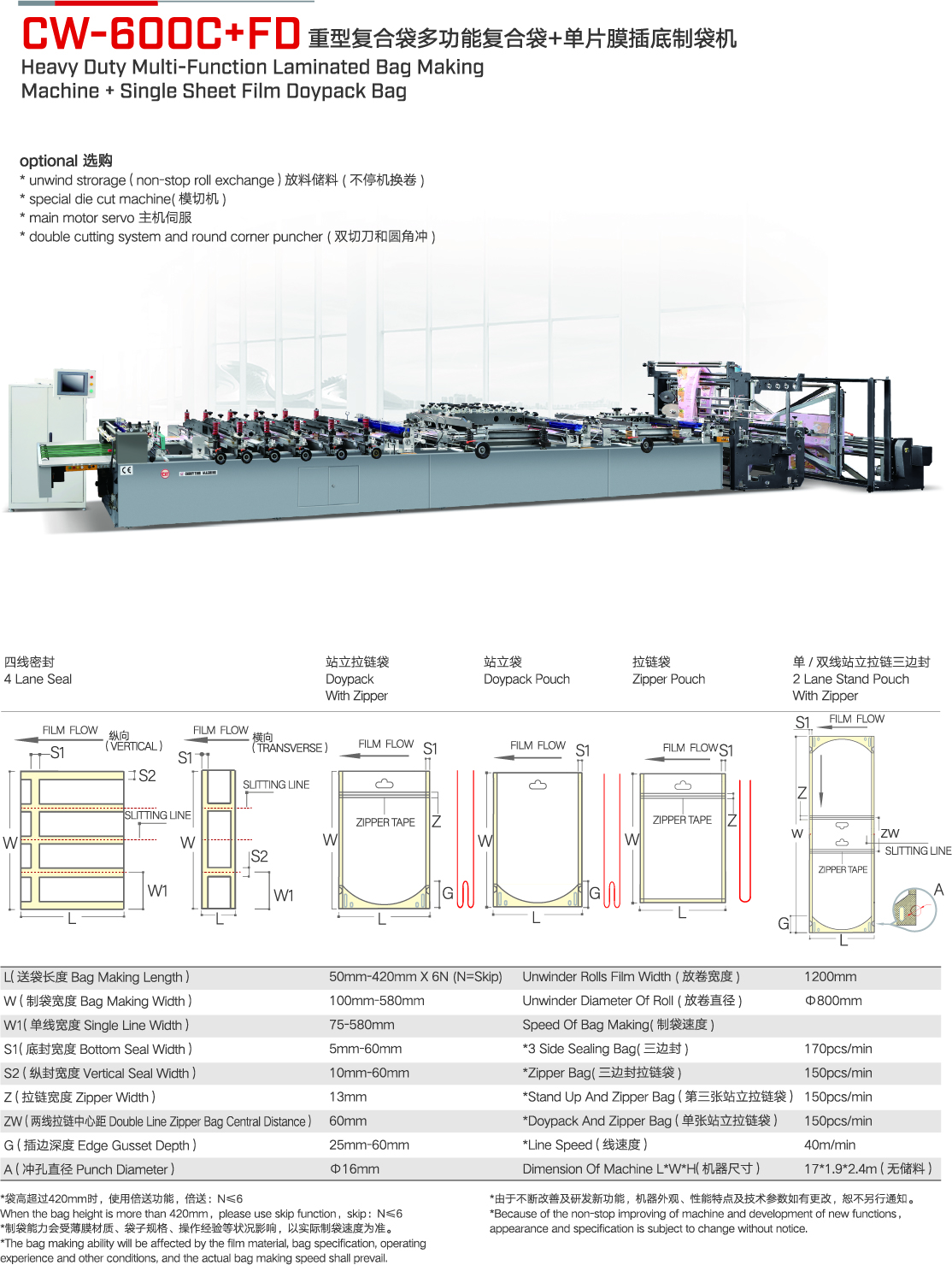

New design for producing America laminated bag (single sheet folded stand up pouch and zipper bag, also can produce pet food bag popular from America)
1. Folding, punch,bottom gusset and sealing automatic design
2. Newly design feeding structure, high speed feeding no shake
3. Special design bottom gusset device, easily to operate
4. Double layers unwinding design, suitable for multi-function laminated bag
5. Newly design zipper and stand up device
1. Air cylinder automatic loading device
2. Hang hole puncher
| Type | CWZD-400C+FD | CWZD-500C+FD | CWZD-600C+FD |
| Unwinder width | 800mm | 1000mm | 1200mm |
| Bag making length | 70-380mm×6（N≤6） | 70-380mm×6（N≤6） | 70-380mm×6（N≤6） |
| Bag making width | 70-380mm | 70-480mm | 70-580mm |
| Bag making speed | 40-150pcs/min | 40-150pcs/min | 40-150pcs/min |
| Line speed | 35m/min | 35m/min | 30m/min |
| Total power | 38KW | 43KW | 48KW |
| Machine weight | 3900kg | 4100kg | 4400kg |
| Machine dimension | 12300X1750X1800mm | 12300X1950X1900mm | 12300X2050X2000mm |
Machine with 4pcs Servo motor(Yaskawa Japan) for film feeding, PLC (Panasonic Japan) control.Perfect choice for making stand up pouch and three side seal pouch in one machine !!
 Double unwinding without transverse deviation correction (with pneumatic feeding) |  Triangle folding device for doypack bag |  Third film insert Stand Up Pouch Diagram |
 Single film with insert device for bottom fold |  Vertical sealing part (vertical sealing 4 groups, used for sealing three side sealing, standing bag bottom sealing, etc.) |  Horizontal sealing part: (3 groups, cast iron type) |
CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery.Due to our strong R&D team, we accept customization of special machines, welcome to consult +86 13958813143（WhatsApp）
