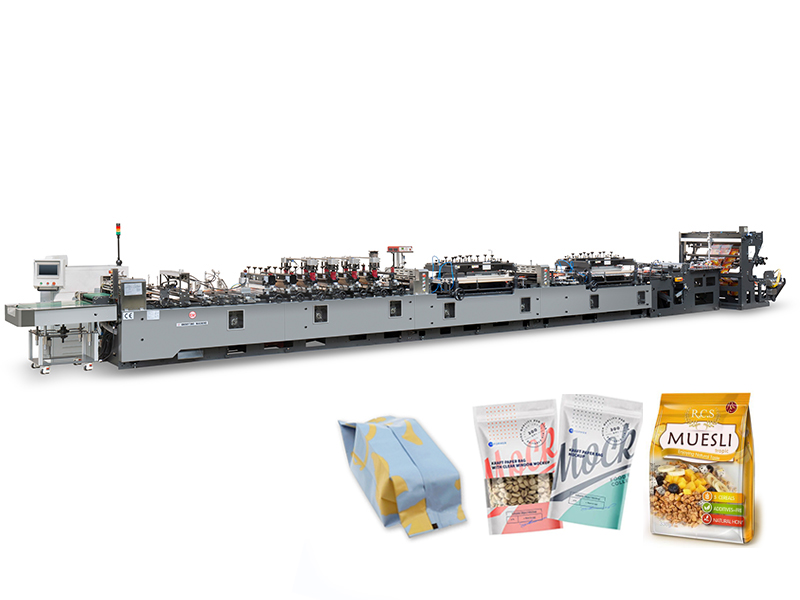

CWZD-600ZF+SZ High Speed Bag Making Machine Specially for Central and Bottom Sealing Bag

3 side sealing pouch / central sealing pouch / central sealing gusset pouch
1. It has many kinds of bags for changeble, you can set the fixed parameter.
2. Double servo motor, double inverter driving, the film will not shake even the machine running at a high speed.
3. Coaxial eccentricity transmission mode, long time heat sealing but low temperature.

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

High Speed Bag Making Machine Specially for Central and Bottom Sealing Bag

Newly designed center sealing machine series, tend to be faster and more professional, meanwhile, it can make many type bags. (ZF type series without stand up and zipper functions)

Main Features

1. It has many kinds of bags for changeble, you can set the fixed parameter.
2. Double servo motor, double inverter driving, the film will not shake even the machine running at a high speed.
3. Coaxial eccentricity transmission mode, long time heat sealing but low temperature.
4. Bridge type heavy pressing heat sealing structure, the sealing have a high intensity.

Optional Equipment

1. handle puncher
2. Butterfly type puncher

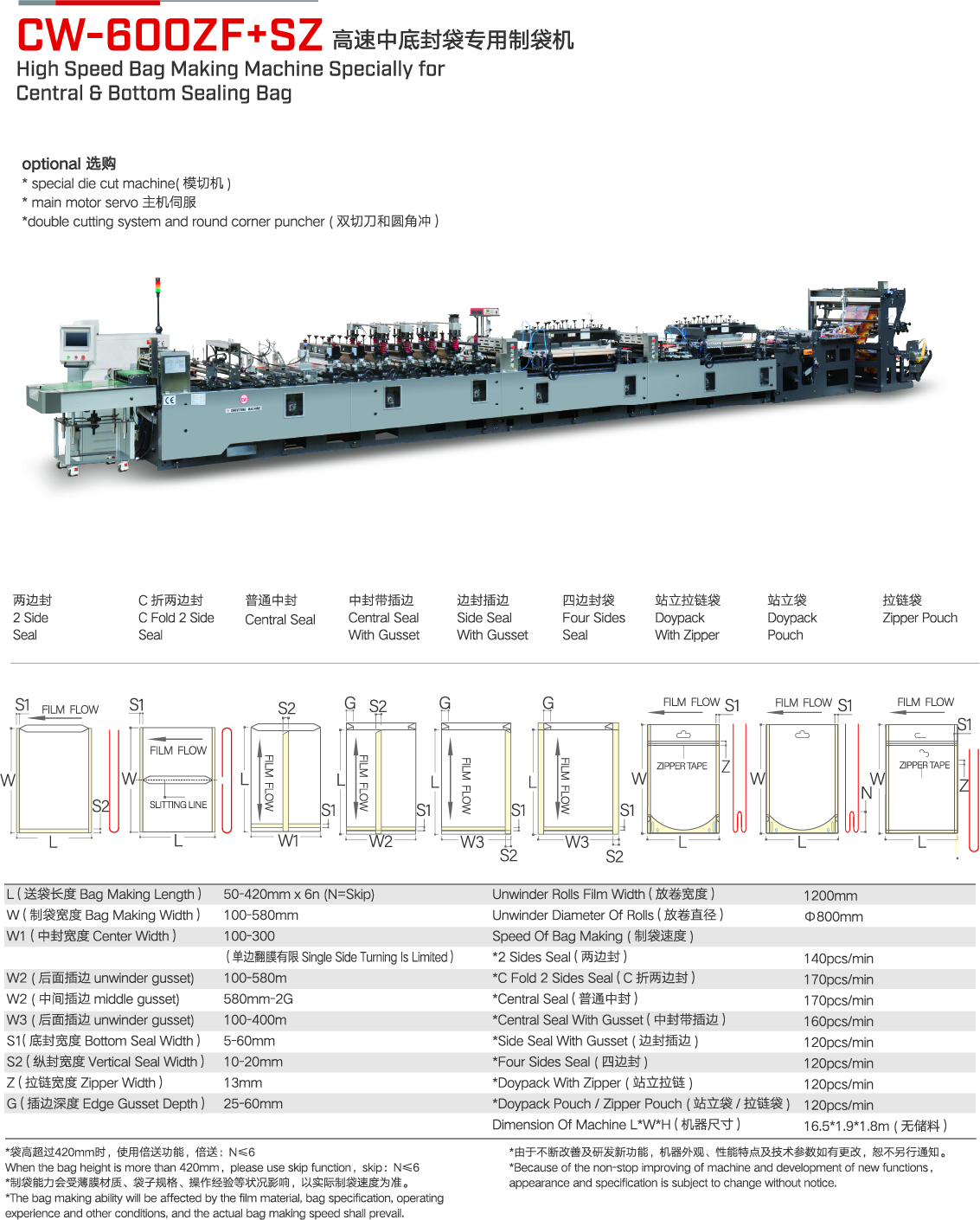

Technical Parameter
Model CWZD-400ZF CWZD-600ZF+SZ
Width of Unwinding 1000mm 1200mm
Pouch-making Length 70-380mm×6(N≤6) 70-380mm×6(N≤6)
Pouch-making Width 75-380mm 100-580mm
Speed 30-140pcs /min 30-130pcs /min
Set Film Dragging Speed 30m/min 30m/min
Total Power 20KW 34KW
Weight of Machine 3200kg 4220kg
Overall Dimension(L×W×H) 10000×1600×1700mm 10000×1800×1700mm



Detailed Images

Unwinding device

1. With automatic tension monitor
2. Equipped with plug type and pneumatic locking device
3. With continuous feeding device from unwind

Central sealing device

Vertical-sealing of central sealing adopts 1 groups for heating fluctuation

Central sealing device

Vertical-sealing of central sealing adopts 1 groups for heating fluctuation

Round bottom gusset device

The single film of stand up bag is folden by the device, the bottom not be cutted.

Bottom sealing device

Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation. (3 group K sealing bar for exchange withbottom sealing bar)

Punching device

standard: easy tear hole& round hole (diameter:6/8/10 each one pcs)optional: handle punch(customerized) euro hole

Stand up pouch with zipper (single web folded type) OPTIONAL: four side seal dog food bag:With extra set of hole punching system withrack for before bottom sealing
